Product Description

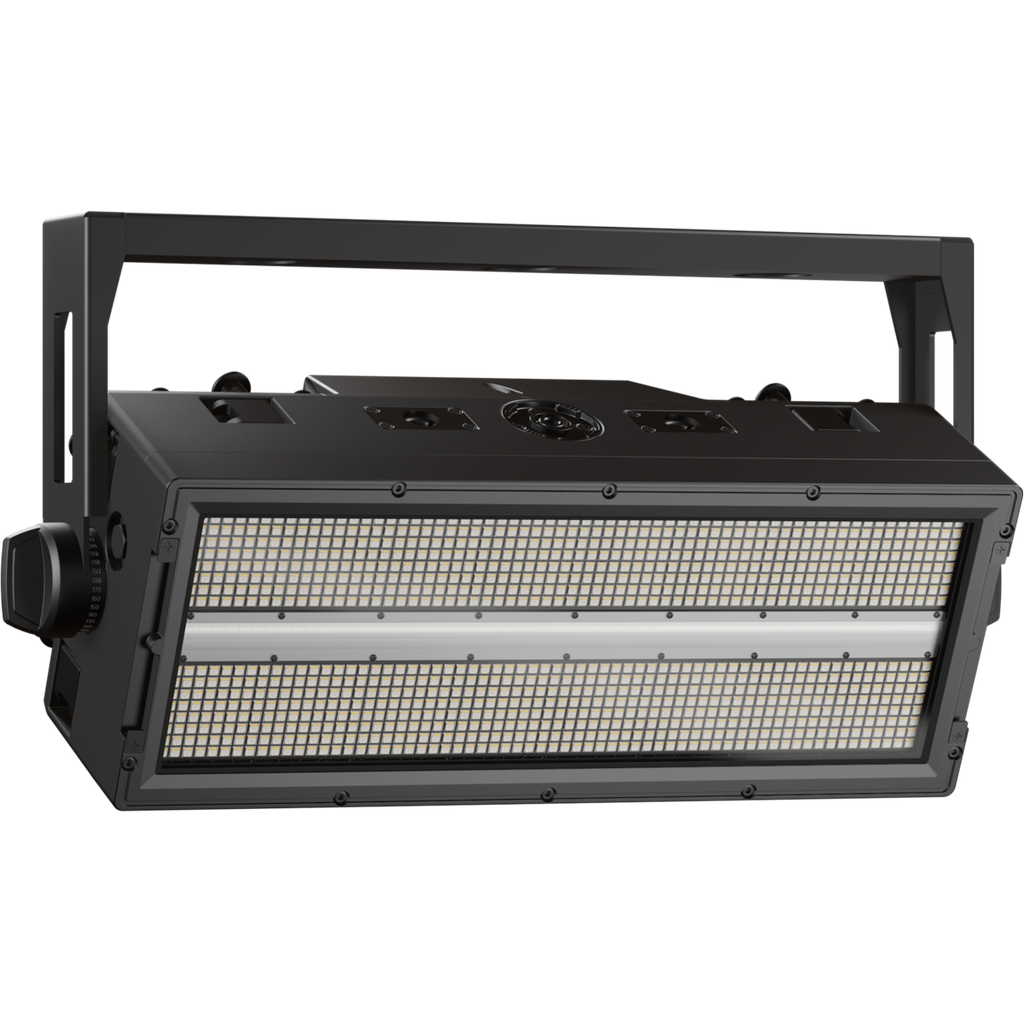

The Sunblast FLX is a high-performance, IP65-rated LED fixture that combines both strobe and washlight capabilities for versatile applications. Its hybrid design includes a central linear white LED beam that replicates the traditional xenon-bulb filament of classic strobes, alongside RGB+Warm White LED plate that provide intense washlight with superior color rendering, powered by Spektra OS.
With advanced pixel mapping, the Sunblast FLX offers precise control over 28 individual pixels - 12 for the white LED strip and 16 for the RGB+WW panel - enabling dynamic effects and creative flexibility. With a peak power output of 1200W when strobing and 400W for continuous floodlighting, it's engineered to deliver exceptional brightness.
Designed for easy, tool-free assembly, the Sunblast FLX features a modular rigging system that supports both vertical and horizontal configurations in clusters. Its rugged IP65 rating ensures dependable performance in outdoor environments, making it an ideal solution for festivals, events, and temporary architectural lighting. Equipped with both wired (sACN and Art-Net) and wireless (CRMX) control options, it integrates seamlessly into any lighting system.
The Sunblast FLX is a high-performance, IP65-rated LED fixture that combines both strobe and washlight capabilities for versatile applications. Its hybrid design includes a central linear white LED beam that replicates the traditional xenon-bulb filament of classic strobes, alongside RGB+Warm White LED plate that provide intense washlight with superior color rendering, powered by Spektra OS.
With advanced pixel mapping, the Sunblast FLX offers precise control over 28 individual pixels - 12 for the white LED strip and 16 for the RGB+WW panel - enabling dynamic effects and creative flexibility. With a peak power output of 1200W when strobing and 400W for continuous floodlighting, it's engineered to deliver exceptional brightness.
Designed for easy, tool-free assembly, the Sunblast FLX features a modular rigging system that supports both vertical and horizontal configurations in clusters. Its rugged IP65 rating ensures dependable performance in outdoor environments, making it an ideal solution for festivals, events, and temporary architectural lighting. Equipped with both wired (sACN and Art-Net) and wireless (CRMX) control options, it integrates seamlessly into any lighting system.
Features:IP65-rated hybrid LED strobe featuring a white LED strip and RGB+Warm White plate, delivering 1200W peak power in strobe mode and 400W continuous output
Advanced pixel mapping with 28 pixels: 16 for RGB+WW and 12 for the white LED beam
Tool-free rigging system supporting both horizontal and vertical modular mounting, with multiple accessory options for versatile setups
- Source:(Beam 12 px) 60 x 12 white LEDs + (Plate 16 px) 1.024 x 1,2WRGB + Warm White LEDs
- Luminous flux:Full Power Strobe - Combined: 108'526 lm@Full
- Luminous flux:Full Power Wash - Plate: 32'771 lm @full
- Luminous flux:Full Power Wash - Beam: 45'170 lm @full
- Luminous flux:Full Power Wash - Combined: 40'507 lm @full
- Lux:Full Power Strobe - Combined: 1'710lx@5 m full
- Lux:Full Power Wash - Plate: 467lx@5 m full
- Lux:Full Power Wash - Beam: 729lx@5 m full
- Lux:Full Power Wash - Combined: 621lx@5 m full
- Source life expectancy:> 20.000 h
- Beam angle:(Plate) RGB+WW: 112° - (Beam) White LEDs: 49° x 130°
- Field angle:(Plate) RGB+WW: 152° - (Beam) White LEDs: 79° x 155°
- Spektra OS:unmatched color precision and consistency
- Colour control:CCT, RGBW, Colour Macros
- CCT:CCT channel from 2.800K to 10.000K
- White presets:2.800-10.000K
- Control Resolution:16-bit dimmer and color control
- Pixel patterns:pre-programmed static and dynamic pixel patterns
- FX generator:adjustable foreground/background colour, index, speed, direction
- Static mode:selection of static dimmer, colors and color temperature
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512, RDM, ArtNet, sACN (IGMP v2), CRMX
- DMX channels:8 / 13 / 21 / 36 / 32 / 42 / 47 / 60chmodular and user-customizable DMX architecture (MCA)
- Pixel control:16 px RGB+WW LEDs + 12 px White LEDsindividually select and control sections
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:5selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Display battery:included, self-charging battery backup
- Selectable PWM:1000 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:Seetronic powerCON waterproof IN/OUT connectors
- Signal connection:IP65Seetronic XLR 5p IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection:Seetronic Ethernet IP in/out connectors
- EtherFlow:Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):strobe: 1.200 W (peak) - wash: 400W
- Output (at 230V):2units on a single power line
- Standby power:7,6W
- Power factor:> 0,94
- IP rating:IP65 for temporary outdoor use
- Cooling:forced-air with low-noise fan
- Housing:Weatherproof IP65 construction with die-cast magnesium alloy
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):542 x 260 x 175mm
- Weight:11,6kg
- Suspension and fixing:hanging bracket for floor positioning with "Quick-Lock" system
- Bracket system:Several brackets available for simply array mounting - see available accessories
- Hardware on-board:fast ancor points on the front for accessory mounting and on board mechanics for modular assembly of multiple fixtures
- Compliance:CE, RCM, FCC, cTUVus
