Product Description

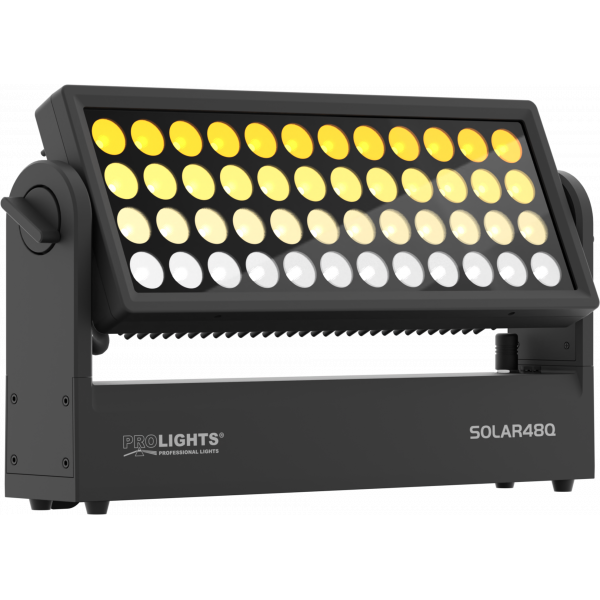

Solar 48Q is a compact fan-free outdoor wash light featuring an outstanding brightness of 22'760 lumens. Equipped with 48x10 W RGBW full-colour LEDs all delivering superior colour mixing. Featuring a slimline styling, multiple interchangeable optics through magnets, asymmetrical filters which combined, make the Solar 48Q an incredibly flexible device for indoor and outdoor use. Whilst highly-powerful, the Solar 48Q is also completely silent.
Solar 48Q is a compact fan-free outdoor wash light featuring an outstanding brightness of 22'760 lumens. Equipped with 48x10 W RGBW full-colour LEDs all delivering superior colour mixing. Featuring a slimline styling, multiple interchangeable optics through magnets, asymmetrical filters which combined, make the Solar 48Q an incredibly flexible device for indoor and outdoor use. Whilst highly-powerful, the Solar 48Q is also completely silent.
Features:48x10W RGBW / FC LED delivering 22'760 lumens
Compact form factor and fan-free
Wireless DMX on-board
- Source:48x10WRGBW LEDs
- Luminous flux:28'213@Full
- Lux:(25°) 4'638lx@5 m full
- Lux:(45°) 986lx@5 m full
- Source life expectancy:> 50.000 h
- Beam angle:25°
- Additional optics:10° / 15° / 45° / 40° filter / 60° filter/ 10x60° filter / 30x60° filter
- Other:magnetic 40° filter included, barn door not included
- Colour mixing:RGBW / FC
- CCT:CCT control through dedicated DMX channel
- Colour wheel:virtual colour wheel with macros
- Macros:several pre-built macros with adjustable speed
- FX generator:section effect with 4 horizontal individually select and control sections
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512, RDM, W-DMX
- DMX channels:5 / 7 / 10 / 17 / 22ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Tilt:0 - 150°with manual adjustment
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Display battery:included, self-charging battery backup
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:Seetronic powerCON waterproof IN/OUT connectors
- Signal connection:Seetronic XLR 5p IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Data connection:W-DMX receiver
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):520W
- Output (at 230V):4units on a single power line
- Power factor:> 0,95
- IP rating:IP65 for temporary outdoor use
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):563x314x93mm
- Weight:12,9kg
- Suspension and fixing:hanging bracket for floor positioning with "Quick-Lock" system
- Hardware on-board:magnetic filter frame with 40° filter
- Compliance:CE, UKCA, RCM
