Product Description

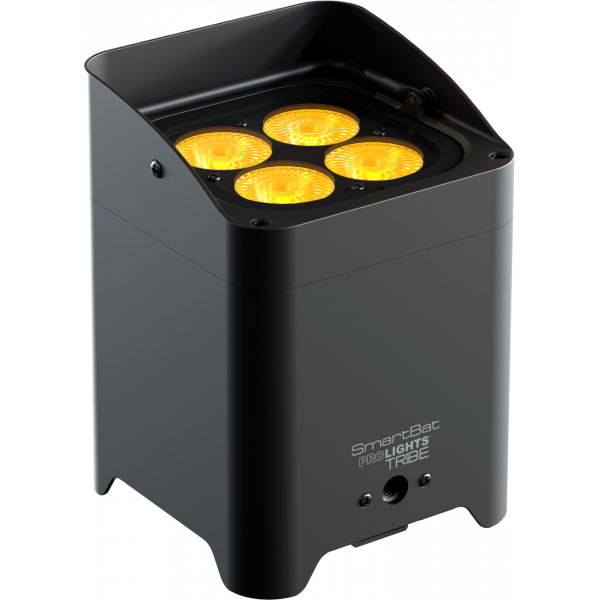

Smart Bat is a wireless light designed to rewrite the rules for battery operated fixtures. Ensuring that high performance and good design all housed in a compact size and price that makes it affordable makes the Smart Bat ideal for every kind of event. It can be remotely controlled through proprietary wireless DMX protocol, the SmartColors app or through the IR controller - making it suitable for every level of user.
Smart Bat is a wireless light designed to rewrite the rules for battery operated fixtures. Ensuring that high performance and good design all housed in a compact size and price that makes it affordable makes the Smart Bat ideal for every kind of event. It can be remotely controlled through proprietary wireless DMX protocol, the SmartColors app or through the IR controller - making it suitable for every level of user.
Features:Wireless operated: through proprietary wireless DMX protocol or SmartColors app for IOS and Android devices
Long lasting battery life: 12 h in colour changing mode / 8 h in full
Available in black or white
Adjustable foot support for tilt regulation (up to 20°)
- Source:4x8WRGBW LEDs
- Luminous flux:1'354@Full
- Lux:730lx@5 m full
- Source life expectancy:> 50.000 h
- Beam angle:14,9°
- Lens diameter:42mm
- Additional optics:25° and 45° optional
- Colour mixing:RGBW / FC
- White presets:3.200 K ~ 10.000K
- Colour wheel:virtual colour wheel with macros
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512
- DMX channels:4 / 6 / 10ch
- Display:LED display user interface
- IR:infrared sensor controlled by remote
- Master/Slave:for synchronised operation of more units linked in a chain
- Tilt:(up to) 20°with adjustable foot support
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 25Hz, electronic
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Battery:24Vlithium
- Battery life in colour change mode up to:12h
- Battery life in full-mode up to:8h
- Recharge connection:power cable
- Recharge time:5h (max)
- Battery level indicator:LED battery status indicator
- Power connection:IEC IN/OUT connectors
- Signal connection:XLR 3p IN/OUT connectors
- Wireless Connection:integrated WIBOX, WDBOX proprietary protocol
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):30W
- Max power consumption (120V):31W
- IP rating:IP33
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black or white finishing
- Operating temperature:Ta0 to +40 °C (+32 to +104 °F)
- Dimensions (WxHxD):138x184x145mm
- Weight:3,4kg
- Suspension and fixing:M12 threaded insert for easy clamp installation
- Compliance:CE, UKCA, RCM
