RUBYFCX
Share this product

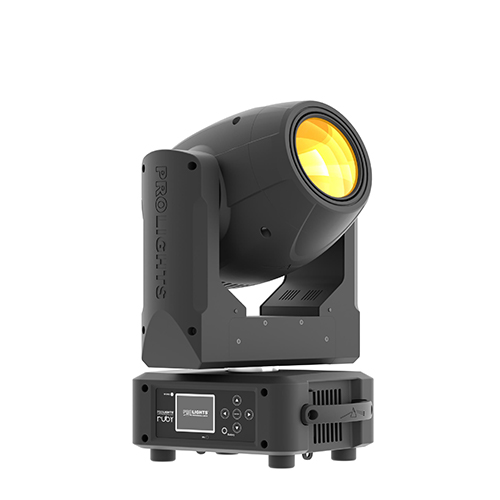

Prolights RUBYFCX

50W RGB/FC LED beam , P/T infinite rotation, 2°, c8f + l6f prism, frost, 12 kg

0.00 AED 0.00 AED

Add to cart
Add to wishlist
View on Manufacturer Website

Product Description

The Ruby FCX is a LED replacement for a discharge beam light. Maintaining the bright, tight,  2° beam and adding full colour mixing through the high-efficiency RGB source.

Ruby FCX is packed with all the features you would expect from a beam effect moving the light - such as gobos, 8f circular and 6f linear prism, frost and infinite pan and tilt rotation.

  • 50W RGB LED source incredibly bright and colourful
  • Infinite pan & tilt rotation delivers new aerial effects
  • Control through DMX, Art-Net and Wireless DMX

    • The Ruby FCX is a LED replacement for a discharge beam light. Maintaining the bright, tight,  2° beam and adding full colour mixing through the high-efficiency RGB source.

    Ruby FCX is packed with all the features you would expect from a beam effect moving the light - such as gobos, 8f circular and 6f linear prism, frost and infinite pan and tilt rotation.

    Features:
    50W RGB LED source incredibly bright and colourful
    Infinite pan & tilt rotation delivers new aerial effects
    Control through DMX, Art-Net and Wireless DMX

    LIGHT SOURCE
    • Source:
      50
      W
    • Lux:
      141'929
      lx
      @3 m full
    • Lux:
      51'094
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      2
      °
    • Lens diameter:
      116
      mm
    • Lens type:
      high-quality glass lens optics
    • Focus:
      motorised 8-bit
    COLOUR SYSTEM
    • Colour mixing:
      RGB / FC
    • CCT:
      CCT control through dedicated DMX channel
    • White presets:
      2.000 K - 8.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built pixel macros with adjustable speed
    DYNAMIC EFFECTS
    • Circular prism:
      8
      -f
      with bi-directional rotation, indexing
    • Linear prism:
      6
      -f
      with bi-directional rotation, indexing
    • Frost:
      to soften the beam edge
    GOBOS
    • Fixed gobos:
      17
      fixed gobos + open
    CONTROL
    • Supported Protocols:
      DMX512, RDM, Art-Net, W-DMX
    • DMX channels:
      18 / 20 / 22 / 23
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      LCD high resolution colour display with autoflip
    • Hibernation:
      power safe mode when lost DMX
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    MOVEMENT
    • Pan:
      540° / 630
      °
      - 8/16-bit resolution with 360° endless rotation
    • Tilt:
      265
      °
      - 8/16-bit resolution with 360° endless rotation
    • Position feedback:
      automatic repositioning after external movement
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX2 (not included)
    CONNECTIONS
    • Power connection:
      Seetronic powerCON IN/OUT connectors
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated W-DMX receiver
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      122
      W
    • Max power consumption (120V):
      124
      W
    • Standby power:
      56.5W
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      forced-air with low-noise fan
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      0 to +45 °C (+32 to +113 °F)
    • Dimensions (WxHxD):
      194x311x133
      mm
    • Weight:
      12
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM
