MOSAICOXLPLUS
Share this product

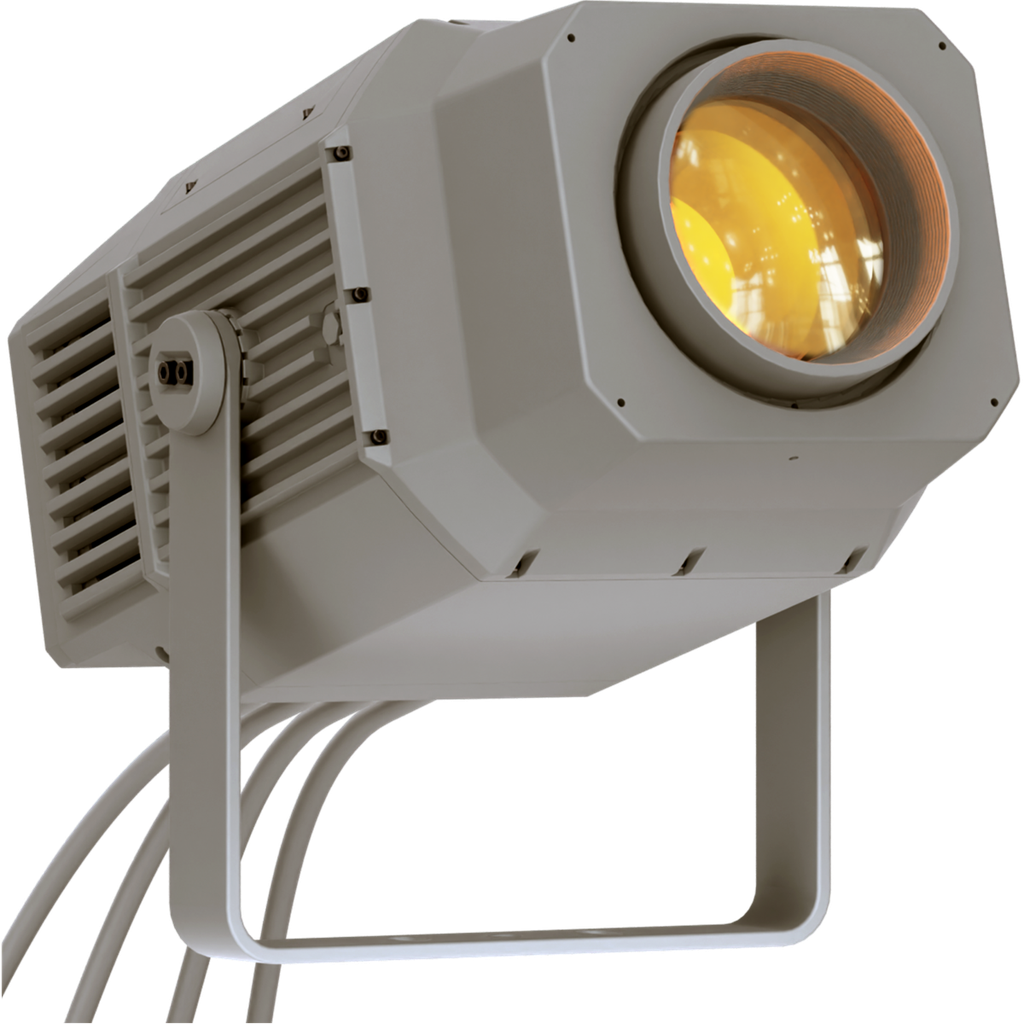

Prolights MOSAICOXLPLUS

600W IP66 zoomable LED image projector with CMY and framing shutter

0.00 AED 0.00 AED

Add to cart
Add to wishlist
View on Manufacturer Website

Product Description

Mosaico XL+ is an extremely powerful outdoor LED image projector for long-range projection of textures, images and logos onto buildings and landscapes. Built in a durable IP66 die-cast housing, the Mosaico XL+ offers a phenomenal output of 23'600 lumens and an extensive set of features including linear CMY+CTO colour mixing system and profile to precisely shape the projection area. The exceptional zoom ranges from 6° to 50° allowing this fixture to be installed at any distance making it versatile in both near-field and long-throw installations, awesome for static and animated facade building lighting.

  • IP66 allowing long-lasting installation with minimal maintenance
  • Equipped with 6°- 50° linear zoom system to for both near and long throw installation
  • 600W White LED engine with 6.300 K CT delivering 23'600 lumens output
  • Extensive feature set including CMY and linear CTO, shutter frame and animation wheel

    • Mosaico XL+ is an extremely powerful outdoor LED image projector for long-range projection of textures, images and logos onto buildings and landscapes. Built in a durable IP66 die-cast housing, the Mosaico XL+ offers a phenomenal output of 23'600 lumens and an extensive set of features including linear CMY+CTO colour mixing system and profile to precisely shape the projection area. The exceptional zoom ranges from 6° to 50° allowing this fixture to be installed at any distance making it versatile in both near-field and long-throw installations, awesome for static and animated facade building lighting.

    Features:
    IP66 allowing long-lasting installation with minimal maintenance
    Equipped with 6°- 50° linear zoom system to for both near and long throw installation
    600W White LED engine with 6.300 K CT delivering 23'600 lumens output
    Extensive feature set including CMY and linear CTO, shutter frame and animation wheel

    LIGHT SOURCE
    • Source:
      600
      W
      high-power white LED
    • Source CCT:
      6.300
      K
    • Luminous flux:
      (6,8°) 17'404 lm - (52,1°) 23'570 lm
      @Full
    • Lux:
      (6,8°) 59'962 lx - (52,1°) 1'454
      lx
      @5 m full
    • Source life expectancy:
      > 20.000 h
    OPTICS
    • Zoom range:
      6,8° - 52,1
      °
      motorised linear zoom
    • Lens diameter:
      135
      mm
    • Lens type:
      high-quality glass lens optics
    • Focus:
      motorised 8/16-bit
    COLOUR SYSTEM
    • Colour mixing:
      linear CMY
    • CCT:
      linear CTO correction 3.000 K ~ 6.000 K
    • Colour wheel:
      open + 6
      interchangeable colour filters
    DYNAMIC EFFECTS
    • Shutter system:
      4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
    • Animation wheel:
      animation wheel with CW and CCW rotation
    • Circular prism:
      4
      -f
      with bi-directional rotation, indexing
    • Frost:
      dual soft-edge and heavy
    • Iris:
      5 ~ 100
      %
      motorised iris
    GOBOS
    • Rotating gobos:
      7
      rotating gobos + open, interchangeable, indexing
    • Gobo size (BW):
      outer: 26,9 mm - image: 20,5 mm
    • Gobo size (Color):
      outer: 26,9 mm - image: 20,5 mm
    CONTROL
    • Supported Protocols:
      DMX512, RDM, CRMX + WDMX
    • DMX channels:
      28 / 30 / 35 / 44
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      black OLED touch display
    • Stand Alone:
      Stand Alone programmer and playback
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Selectable PWM:
      600 to 40000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      1,8 m
      moulded IP power IN/OUT connectors
    • Signal connection:
      1,8 m
      moulded IP signal IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Adaptors:
      XLR and BARE END 16A adaptors included
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      680
      W
    • Output (at 230V):
      4
      units on a single power line
    • Standby power:
      58,7 W
    • Power factor:
      >0,96
    PHYSICAL
    • IP rating:
      IP66 for outdoor installations
    • IK rating:
      IK09 impact rating
    • Cooling:
      heat pipe with low-noise fan
    • Housing:
      Sturdy die-cast aluminium body, scratch-resistant C5M Marine Grade paint (as standard)
    • Finish:
      grey (RAL 9006)
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      403x462x565
      mm
    • Weight:
      35,5
      kg
    INSTALLATION
    • Suspension and fixing:
      bracket for hanging and positioning
    • Hardware on-board:
      ancor points on the front for accessory mounting
    • Other:
      inspectable cover window for gobos replacement and maintenance and record scenes and create chases and shows throughout these scenes
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM, FCC, cTUVus
