Product Description

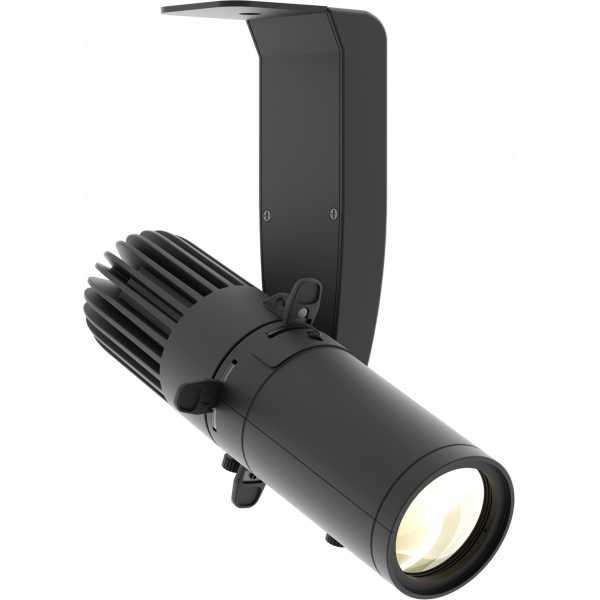

EclMiniProfile WDMX is a new concept of mini LED ellipsoidal. Showcasing a stylish design, ease of use, precise optics, sharp image projection and bright even projection all in a compact housing that is just a quarter of the size of traditional ellipsoidals. EclMiniProfile WDMX comes with a built-in Wireless DMX (WDMX) module for cable-free operation, extending the possible applications of this light. Designed for applications in commercial installtions, museums, restaurant, churches, educational theatres, and any other installation where size is an important factor. Available in Tungsten and Daylight versions, EclMiniProfile WDMX performs even field projection, high CRI at any level of brightness and linear dimmer over the entire ramp.
EclMiniProfile WDMX is a new concept of mini LED ellipsoidal. Showcasing a stylish design, ease of use, precise optics, sharp image projection and bright even projection all in a compact housing that is just a quarter of the size of traditional ellipsoidals. EclMiniProfile WDMX comes with a built-in Wireless DMX (WDMX) module for cable-free operation, extending the possible applications of this light. Designed for applications in commercial installtions, museums, restaurant, churches, educational theatres, and any other installation where size is an important factor. Available in Tungsten and Daylight versions, EclMiniProfile WDMX performs even field projection, high CRI at any level of brightness and linear dimmer over the entire ramp.
Features:Bright, compact LED ellipsoidal with sharp optics and wireless DMX control.
Available with Warm and Cold White High CRI LED sources.
19° - 26° - 36° - 50° lens options
- Source:28WWhite CREE LED
- Source CCT:(TU) 3.000 K - (DY) 5.700K
- Luminous flux:(TU) (19°) 563 lm - (26°) 554 lm - (36°) 582 lm - (50°) 552@Full
- Luminous flux:(DY) (19°) 731 lm - (26°) 729 lm - (36°) 743 lm - (50°) 693 lm @full
- Lux:(TU) (19°) 330 lx - (26°) 180 lx - (36°) 96 lx - (50°) 51lx@5 m full
- Lux:(DY) (19°) 397 lx - (26°) 212 lx - (36°) 107 lx - (50°) 52lx@5 m full
- CRI:(TU) >92; (DY) >80
- TLCI:(TU) >90; (DY) >68
- TM30 Rf:(TU) >90; (DY) >79
- TM30 Rg:(TU) >97; (DY) >97
- Source life expectancy:> 70.000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle:optional profile lens 19° / 26° / 36° / 50° (gobo holder included) - wash zoom lens 15°-30°/ 25°-50°
- Lens type:high-quality glass lens optics
- Static mode:selection of static colour
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
- Fixed gobos:gobo holder Included in optics
- Gobo size:E, outer: 37 mm - image: 23 mm - thickness: 1,1 mm
- Supported Protocols:W-DMX
- DMX channels:1 / 2 / 5ch
- Display:LCD display
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 25Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:
- Power connection:16 A Schuko plug
- Wireless Connection:integrated W-DMX receiver
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):22W
- Output (at 230V):43
- Power factor:>0,40
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black (RAL 9004)
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):112x202x226mm
- Weight:1kg
- Compliance:CE, UKCA, RCM
