Product Description

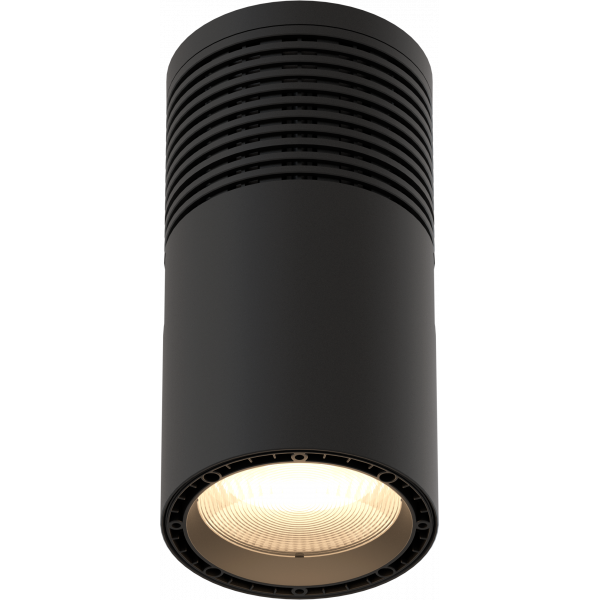

The EclPendant S merges elegant design with cutting-edge, eco-friendly technology, ensuring optimal illumination for any venue. This series of pendant lights offers a diverse range of LED sources, including options in RGB + Warm White, Variable White and single color (3000K, 4000K and 5600K), each featuring a 50 Watt LED that provides high-quality light output, uniform color, and remarkable durability.
Completed by a wide range of optics, accessories, and versatile mounting solutions, the EclPendant S adapts to various installation needs. Mounting alternatives include pendant, surface, stem, wall, adjustable bracket, and recessed options. It can be directly wired to mains power (100-240 VAC or 48 VDC) and integrates seamlessly with control protocols like DMX + RDM and DALI, thanks to its accessible terminal blocks.
User-friendly settings are manageable via the unit's onboard GUI, enhancing its functionality. The fixture's wide array of optics and accessories is designed for utmost flexibility and precision, allowing easy on-site changes without complications.
Notably, the EclPendant S features a fan-free thermal design, ensuring quiet operation while delivering consistent and robust lumen output throughout its extended lifespan.
* Please note: The hanging bracket is not included with the product.
The EclPendant S merges elegant design with cutting-edge, eco-friendly technology, ensuring optimal illumination for any venue. This series of pendant lights offers a diverse range of LED sources, including options in RGB + Warm White, Variable White and single color (3000K, 4000K and 5600K), each featuring a 50 Watt LED that provides high-quality light output, uniform color, and remarkable durability.
Completed by a wide range of optics, accessories, and versatile mounting solutions, the EclPendant S adapts to various installation needs. Mounting alternatives include pendant, surface, stem, wall, adjustable bracket, and recessed options. It can be directly wired to mains power (100-240 VAC or 48 VDC) and integrates seamlessly with control protocols like DMX + RDM and DALI, thanks to its accessible terminal blocks.
User-friendly settings are manageable via the unit's onboard GUI, enhancing its functionality. The fixture's wide array of optics and accessories is designed for utmost flexibility and precision, allowing easy on-site changes without complications.
Notably, the EclPendant S features a fan-free thermal design, ensuring quiet operation while delivering consistent and robust lumen output throughout its extended lifespan.
* Please note: The hanging bracket is not included with the product.
Features:House light with 50W RGB + Warm White LED source with passive cooling
100-240 VAC or 48 VDC power input. Control via DALI, DMX, RDM
Extensive mounting option, optics and accessories available
- Source:50WRGB + Warm White LEDs
- Source CCT:2'800K - 10'000K; WW LED: 3.200KK
- Luminous flux:2'637@Full
- Lux:513lx@5 m full
- CRI:92,3 @Full; 93,2 @3200K; 92,8 @5600K
- R9:97,1 @Full; 96,2 @3200K; 92,5 @5600K
- TLCI:91 @Full; 80 @3200K; 89 @5600K
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle:20°
- Field angle:40°
- Lens diameter:100mm
- Lens type:fresnel lens
- Other:see available accessories
- Colour mixing:RGB + Warm White
- CCT:CCT control, + / - green correction, tungsten emulation
- Colour wheel:gel filters included
- Macros:several pre-built macros with adjustable speed
- Static mode:selection of static dimmer, colors and color temperature
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DALI Type8,DMX512, RDM, CRMX (optional)
- DMX channels:UNO / DUO / Basic / Standard / Extendedch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Other:16bit control of dimmer and colour
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1-30Hz, electronic
- Selectable PWM:600 to 40000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:Screw terminal block
- Signal connection:Screw terminal block
- Wireless Connection:optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible (Order code SP018409)
- Mains power supply:100-240V - 50/60Hz
- Low Voltage DC mains:DC 48V for emergency light use
- Max power consumption (230V):60W
- Output (at 230V):24units on a single power line
- Power factor:> 0,93
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black (RAL 9004) or white (RAL 9010)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):135x300x135mm
- Weight:3,1kg
- Suspension and fixing:bracket for hanging and positioning (bracket not included on the product)
- Compliance:CE, RCM, FCC, cTUVus
