Product Description

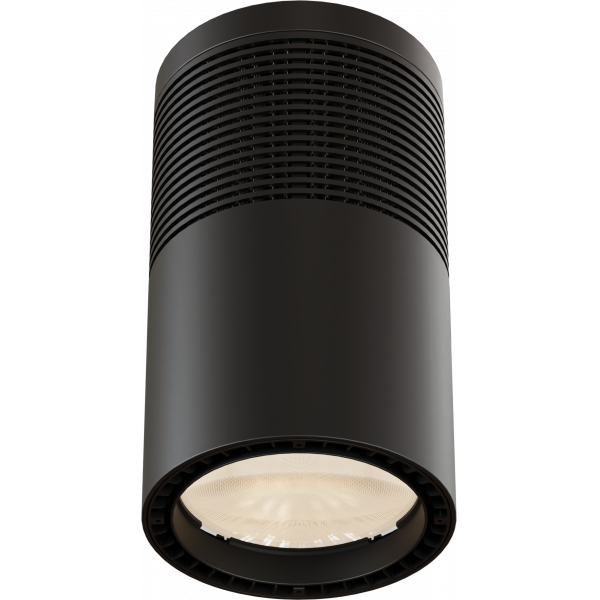

The EclPendant is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.
This innovative series of pendant lights come with a wide selection of LED sources, a full range of optics, accessories, mounting options and control.
The EclPendant has a 200-Watt LED source. Its source varies in RGB + Warm White, 3,000K, 4,000K or 5,600K. They all have high-quality light output, a consistent colour temperature and unmatched durability.
Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).
The EclPendant was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections.
The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience.
The EclPendant has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.
NOTE: the hanging bracket does not come with the product
The EclPendant is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.
This innovative series of pendant lights come with a wide selection of LED sources, a full range of optics, accessories, mounting options and control.
The EclPendant has a 200-Watt LED source. Its source varies in RGB + Warm White, 3,000K, 4,000K or 5,600K. They all have high-quality light output, a consistent colour temperature and unmatched durability.
Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).
The EclPendant was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections.
The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience.
The EclPendant has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.
NOTE: the hanging bracket does not come with the product
Features:200W LED source power, RGB + Warm White, 3,000K, 4,000K or 5,600K with passive cooling
AC or DC power input. Control via DALI, DMX, RDM, Wireless DMX (CRMX+W-DMX)
Extensive mounting option possibilities, optics and accessories are all easily changeable
- Source:200WRGB + Warm White LEDs
- Source CCT:WW LED: 3.200KK
- Luminous flux:10'168@Full
- Lux:1.757lx@5 m full
- CRI:94,1 @3200K; 94,6 @5600K
- R9:91,4 @3200K; 96,6 @5600K
- TLCI:89 @3200K; 94 @5600K
- TM30 Rf:92,9 @3200K; 91,3 @5600K
- TM30 Rg:106,2 @3200K; 103,8 @5600K
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle:20°
- Field angle:40°
- Lens diameter:157mm
- Lens type:fresnel lens
- Other:see available accessories
- Colour mixing:RGB + Warm White
- CCT:CCT control, + / - green correction, tungsten emulation
- Colour wheel:gel filters included
- Macros:several pre-built macros with adjustable speed
- Static mode:selection of static dimmer, colors and color temperature
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DALI Type8,DMX512, RDM, CRMX
- DMX channels:UNO / DUO / Basic / Standard / Extendedch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Other:16bit control of dimmer and colour
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1-30Hz, electronic
- Selectable PWM:600 to 40000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:screw terminal block,Neutrik powerCON TRUE1 IN/OUT connectors
- Signal connection:screw terminal block,Amphenol XLR 5p IN/OUT connectors
- Wireless Connection:integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Low Voltage DC connector:DC 48V through screw terminal block
- Mains power supply:100-240V - 50/60Hz
- Low Voltage DC mains:DC 48V for emergency light use
- Max power consumption (230V):220W
- Output (at 230V):10units on a single power line
- Power factor:> 0,97
- IP rating:IP20
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:black (RAL 9004) or white (RAL 9010)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):202x392x202mm
- Weight:7,5kg
- Suspension and fixing:bracket for hanging and positioning (bracket not included on the product)
- Compliance:CE, UKCA, RCM, cTUVus, FCC
