Product Description

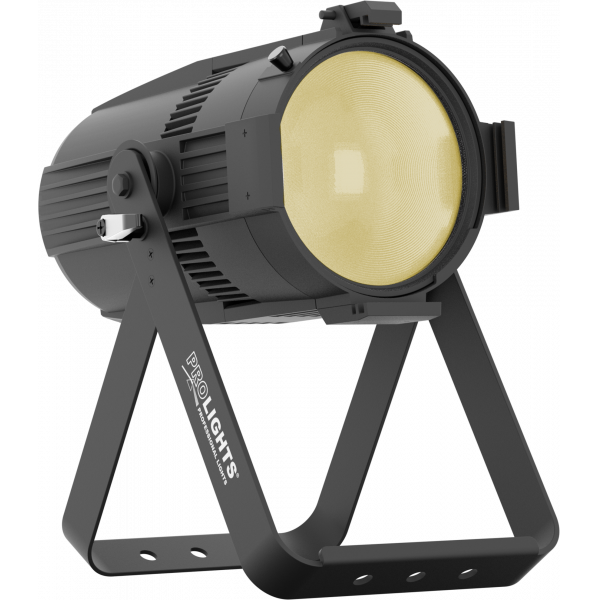

EclPar is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TV and corporate applications. EclPar TU and DY features a 177W white LED source (3.200 K TU; 6.000 K DY) delivering a tremendous lumen output and superior light quality with CRI and R9 > of 96. EclPar UV is a real UV LED luminaire with a 365nm wavelength LED source. The fixture offers an extensive accessory range including barn doors, filter frame, egg crate and a multitude of interchangeable lenses. EclPar features a smooth 16-bit dimming as well as RDM control and adjustable PWM to look good in front of a camera.
EclPar is a range of multipurpose LED fixtures with a single source, delivering silent operation, high quality of light and optical flexibility, designed to redefine the standard for theatrical, TV and corporate applications. EclPar TU and DY features a 177W white LED source (3.200 K TU; 6.000 K DY) delivering a tremendous lumen output and superior light quality with CRI and R9 > of 96. EclPar UV is a real UV LED luminaire with a 365nm wavelength LED source. The fixture offers an extensive accessory range including barn doors, filter frame, egg crate and a multitude of interchangeable lenses. EclPar features a smooth 16-bit dimming as well as RDM control and adjustable PWM to look good in front of a camera.
Features:177W White LED source (3.200 K TU; 5.600 K DY) with CRI and R9 > of 96; UV 108W 365nm wavelength LED source
Flex lens system: TU and DY 24° on-board - 12° and 73° included - 40° optional - UV 40° on-board
Silent operation and adjustable PWM
- Source:108 W (UV) / 177WWhite LED
- Source CCT:(TU) 3.200K - (DY) 5.600K
- Luminous flux:(TU) 12°: 11'726 lm - 24°: 12'454 lm - 73°: 11'834@Full
- Luminous flux:(DY) 12°: 13'739 lm - 24°: 14'436 lm - 73°: 13'913 lm; (UV) 229,07 lm
- Lux:(TU) 12°: 5'102 lx - 24°: 2'333 lx - 73°: 344lx@5 m full
- Lux:(DY) 12°: 5'947 lx - 24°: 2'777 lx - 73°: 413 lx; (UV) 5'724lx@5 m full
- CRI:> 97 for TU; > 96 for DY
- R9:> 97 for TU; > 96 for DY
- TLCI:> 98 for TU; > 95 for DY
- TM30 Rf:> 93 for TU; > 90 for DY
- TM30 Rg:< 102 for TU; < 101 for DY
- Source life expectancy:> 70.000 h
- Beam angle:with different lens included: 12° / 24° / 73°
- Field angle:with different lens included: 28° / 41° / 104°
- Lens diameter:163mm
- Lens type:fresnel lens
- Additional optics:24° (onboard - for TU and DY versions), 12° and 73° lens included (for TU and DY versions), 40° lens optional (for TU and DY versions)
- Other:40° lens included on board in UV version; no other lenses availables
- Static mode:selection of static colour
- Manual mode:manual adjustment of dimmer and strobe
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512, RDM
- DMX channels:1 / 2 / 3 / 6ch
- RDM:for remote addressing and parameter configuration
- Display:OLED display
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:Neutrik powerCON IN/OUT connectors
- Signal connection:Amphenol XLR 3p + 5p IN/OUT connectors
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):(TU, DY) 207 W - (UV) 204W
- Output (at 230V):15units on a single power line
- Standby power:110VAC/3.8W, 230VAC/4.5W
- Power factor:> 0.95
- IP rating:IP20
- Cooling:forced-air with low-noise fan
- Housing:Die-cast aluminium
- Finish:black
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):316x404x317mm
- Weight:5,5kg
- Suspension and fixing:any position with quick-lock omega brackets
- Other:gel frame holder included in the box (for TU and DY versions) - egg crate optional - barndoors optional
- Compliance:CE, UKCA, RCM
