Product Description

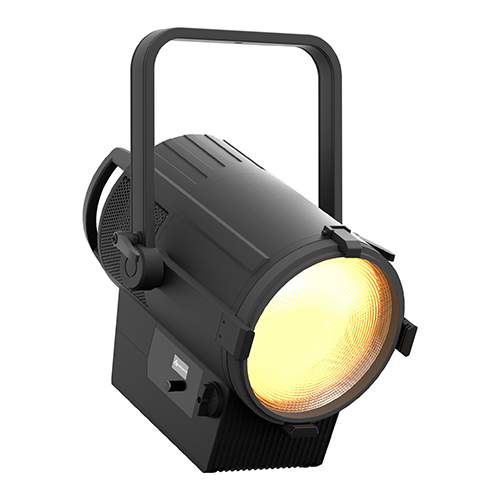

EclFresnel 2K is the LED replacement for a standard tungsten 2.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a power source that focuses on outstanding colour rendition. The EclFresnel 2K adds all the advantages of LED to the Fresnel.
EclFresnel 2K is the LED replacement for a standard tungsten 2.000W Fresnel. Featuring the output characteristics of a traditional Fresnel but with beam control, functional barn doors and a power source that focuses on outstanding colour rendition. The EclFresnel 2K adds all the advantages of LED to the Fresnel.
Features:TU (3.200 K) and DY (5.600 K) versions available both with HD dimming
Fresnel lens with 16° to 64° zoom range
Silent operation for studio and stage use
LIGHT SOURCE
- Source:500Whigh-power white LED
- Source CCT:(TU) 3.200 K - (DY) 5.600K
- Luminous flux:(TU) (16°) 20'256 lm; (64°) 26'126@Full
- Luminous flux:(DY) (16°) 26'255 lm; (64°) 32'428 lm @ full
- Lux:(TU) (16°) 9'047 lx - (64°) 1'770lx@5 m full
- Lux:(DY) (16°) 11'975 lx - (64°) 2'306lx@5 m full
- CRI:(TU) >94; (DY) >91
- R9:(TU) >73; (DY) >80
- TLCI:(TU) >93; (DY) >93
- TM30 Rf:(TU) >92; (DY) >88
- TM30 Rg:(TU) <103; (DY) <104
- Source life expectancy:> 50.000 h
OPTICS
- Zoom range:16° - 64°manual
- Lens diameter:250mm
- Lens type:Fresnel zoom lens
- Other:spigot, barndoor and gel frame included
COLOUR SYSTEM
- Macros:several pre-built macros with adjustable speed
DYNAMIC EFFECTS
- Static mode:selection of static dimmer
- Manual mode:manual adjust of dimmer throught menu and knob
- Auto mode:built-in programs with execution speed adjustment
CONTROL
- Supported Protocols:DMX512, RDM, rotatory knob
- DMX channels:1 / 2 - 1 / 2 - 2 / 3 / 5ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Master/Slave:for synchronised operation of more units linked in a chain
- Other:16bit control of dimmer
MOVEMENT
- Pan:(for pole operated version) 360°with manual regulation
- Tilt:(for pole operated version) 180°with manual adjustment
ELECTRONICS
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
CONNECTIONS
- Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
ELECTRICAL
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):500W
- Output (at 230V):5units on a single power line
- Power factor:>0,96
PHYSICAL
- IP rating:IP20
- Cooling:heat pipe with low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black (RAL 9004) or white (RAL 9010)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):421x537x456mm
- Dimensions with PO system (WxHxD):401x691x456mm
- Weight:17,2kg
- Weight with PO system:18kg
INSTALLATION
- Suspension and fixing:bracket for hanging and positioning
- Hardware on-board:filter frame, 8 doors barndoor, spigot
- Other:Spigot 28 mm
CERTIFICATIONS / REPORTS
- Compliance:CE, UKCA, RCM
