Product Description

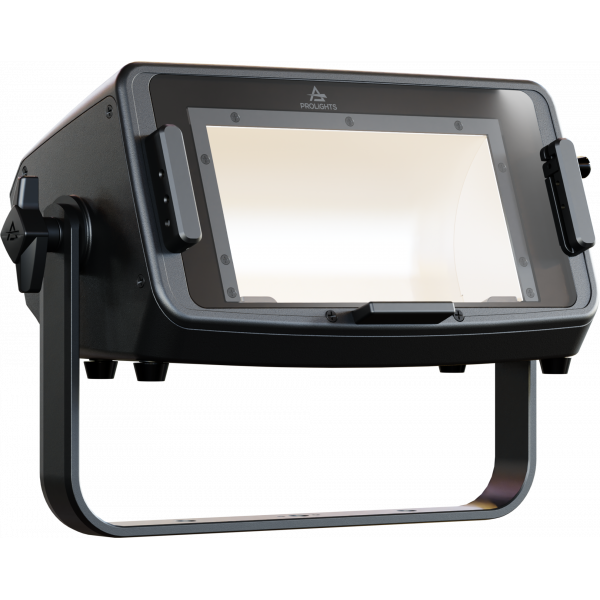

The EclExpo Flood300VW is a variable white LED Floodlight, designed for exhibitions and showrooms, as a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric luminaires.
The EclExpo Flood300VW has a 300W LED source, with variable white ranging from 2,700K to 6,500K, and an outstanding lumen output with high-scoring CRI levels (>95), TM-30, R9. Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.
This unit is incredibly user-friendly, using remote control via DMX and RDM (optional W-DMX + CRMX), or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT and dimmer settings.
Its unique design and performance set a new standard for exhibition floodlights.
The EclExpo Flood300VW is a variable white LED Floodlight, designed for exhibitions and showrooms, as a high-quality LED replacement of traditional tungsten, CDM or HMI asymmetric luminaires.
The EclExpo Flood300VW has a 300W LED source, with variable white ranging from 2,700K to 6,500K, and an outstanding lumen output with high-scoring CRI levels (>95), TM-30, R9. Combined with a reflector, it has a wide asymmetric beam angle of 100° (Horizontal) x 60° (Vertical) of indirect light emission.
This unit is incredibly user-friendly, using remote control via DMX and RDM (optional W-DMX + CRMX), or intuitive stand-alone operation through an on-board display and two rotatory knobs CCT and dimmer settings.
Its unique design and performance set a new standard for exhibition floodlights.
Features:300W Variable White LED source, from 2,700K to 6,500K
Asymmetric beam angle of 100° (horizontal) x 60° (vertical)
Xlr5p in/through for DMX/RDM control and communication, optional W-DMX + CRMX, Stand-Alone mode through two rotatory knobs
- Source:300WVariable White LED
- Source CCT:2.700 K - 6.500K
- Luminous flux:@2.700K 7'690 lm; @6.500K 10'877 lm; @full 13'044
- Lux:@2.700K 72 lx; @6.500K 101 lx; @full 121lx@5 m
- CRI:97,7 @2.700 K; 95,6 @6.500 K; 94,9 @full
- R9:84,9 @2.700 K; 86,7 @6.500 K; 82,8 @full
- TLCI:97 @2.700 K; 97 @6.500 K; 97 @full
- TM30 Rf:> 95 @2.700 K; > 91 @6.500 K; > 92 @full
- TM30 Rg:< 102 @2.700 K; < 102 @6.500 K; < 104 @full
- Source life expectancy:> 30.000 hrs (L70B10 @Ta 25° C / 77° F)
- Optics:asymmetrical beam reflector in pure aluminium 99,6%
- Beam angle:(H) 100° x (V) 60°
- Colour mixing:tunable white
- CCT:CCT control through dedicated DMX channel
- White presets:2.700 K - 6.500K
- Colour wheel:built-in white presets
- Control Resolution:16-bit dimmer control
- Static mode:selection of static dimmer and color temperature
- Manual mode:manual adjustment of intensity and CT from knob
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512, RDM, CRMX (optional)
- DMX channels:1 / 2 / 3 / 5 / 11ch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Stand Alone:2rotatory knobs
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:Seetronic powerCON TRUE IP65 IN/OUT
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Wireless Connection:optional LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):310W
- Output (at 230V):8units on a single power line
- Standby power:110V (60Hz): 2W; 230V (50Hz): 3,2W
- Power factor:> 0,97
- IP rating:IP20
- Cooling:forced-air with low-noise fan
- Housing:Sturdy die-cast magnesium body
- Finish:black (RAL 9004)
- Operating temperature:Ta-10 to +45 °C (+14 to +113 °F)
- Dimensions (WxHxD):391x254x208mm
- Weight:5,1kg
- Suspension and fixing:bracket for hanging and positioning
- Other:see available accessories
- Compliance:CE, UKCA, RCM, cTUVus, FCC
