ECLCYC050
Share this product

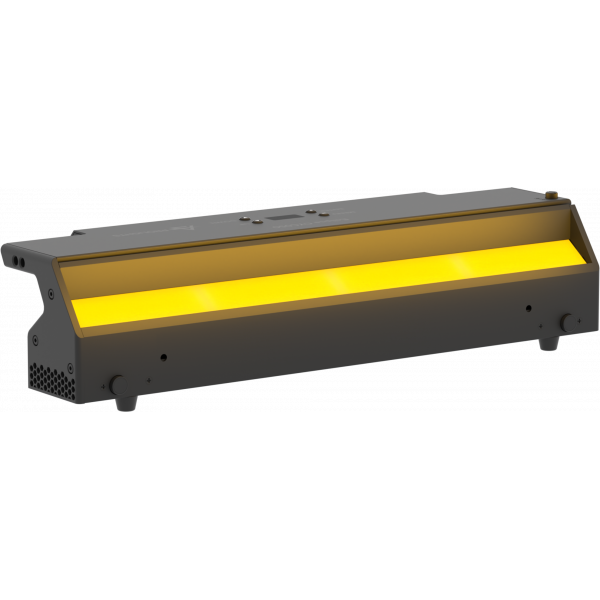

Prolights ECLCYC050

170W RGB+WW LED cyclorama projectors, angle 80°x40°, IP20, 5kg, 2800K-10000K

0.00 AED 0.00 AED

Add to cart
Add to wishlist
View on Manufacturer Website

Product Description

EclCyclorama 050 is a soft-edge, linear cyclorama and floodlight, designed in a surprisingly low profile form factor to meet applications at both front and end of the stage, offering an unprecedent level of brightness in its category. The fixture is equipped with a custom and calibrated RGB + Warm White LED source, which is capable to deliver a linear and high quality white reproduction of the entire spectrum with high CRI, TLCI and TM30 performances. The Optical system has been designed to offer a very wide asymetric beam angle, and capable of a superior lumen efficiency, making the EclCyclorama range a very flexible solution, suitable for both application where fixture are connected each other or separated by a considerable distance, without worrying of dark-edge or uniformity gaps. The fixture is extremely user friendly and offers a multitude of control possibilities being DMX, RDM, Artnet, sACN and Wireless DMX.

  • RGB + Warm White colour systems allows high quality of whites (CRI 93 @3.200 K) and bright colours.
  • Slim design, with only 12 cm height for easy implementation in the front or at the back of the stage.
  • Wide Asymmetric beam angle to allow flexible installation at modular distances between fixtures
  • Hardware designed with tilt angle adjustment, beam control and flexible hanging and ground stacking applications.

    • EclCyclorama 050 is a soft-edge, linear cyclorama and floodlight, designed in a surprisingly low profile form factor to meet applications at both front and end of the stage, offering an unprecedent level of brightness in its category. The fixture is equipped with a custom and calibrated RGB + Warm White LED source, which is capable to deliver a linear and high quality white reproduction of the entire spectrum with high CRI, TLCI and TM30 performances. The Optical system has been designed to offer a very wide asymetric beam angle, and capable of a superior lumen efficiency, making the EclCyclorama range a very flexible solution, suitable for both application where fixture are connected each other or separated by a considerable distance, without worrying of dark-edge or uniformity gaps. The fixture is extremely user friendly and offers a multitude of control possibilities being DMX, RDM, Artnet, sACN and Wireless DMX.

    Features:
    RGB + Warm White colour systems allows high quality of whites (CRI 93 @3.200 K) and bright colours.
    Slim design, with only 12 cm height for easy implementation in the front or at the back of the stage.
    Wide Asymmetric beam angle to allow flexible installation at modular distances between fixtures
    Hardware designed with tilt angle adjustment, beam control and flexible hanging and ground stacking applications.

    LIGHT SOURCE
    • Source:
      170
      W
      RGB + Warm White LEDs
    • Luminous flux:
      (with 40°x80° filter on board) 13'896
      @Full
    • Lux:
      @1 m to wall and 1,5 m height @ full (with standard filter) 625 lx - (with 40° filter) 1'530 lx - (with 10°x60° filter) 1'590 lx - (with 30°x60° filter) 1'690
      lx
    • CRI:
      93 @3.200 K; 91 @5.600 K
    • R9:
      91 @3.200 K; 95 @5.600 K
    • TLCI:
      87 @5.600 K
    • TM30 Rf:
      88,8 @5.600 K
    • TM30 Rg:
      107,4 @5.600 K
    • Source life expectancy:
      > 50.000 h
    OPTICS
    • Beam angle:
      (VxH) 40°x80
      °
    • Additional optics:
      see available accessories
    COLOUR SYSTEM
    • Colour mixing:
      RGB + Warm White
    • CCT:
      CCT control, + / - green correction, tungsten emulation
    • White presets:
      2.800 K - 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    DYNAMIC EFFECTS
    • Control Resolution:
      16-bit dimmer and color control
    CONTROL
    • Supported Protocols:
      DMX512, RDM, Art-Net, sACN, W-DMX
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    ELECTRONICS
    • Dimmer curves:
      selectable dimming modes available
    • Strobe / shutter:
      1-30
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Seetronic powerCON waterproof IN/OUT connectors
    • Signal connection:
      Amphenol XLR 5p IN/OUT connectors
    • Wireless Connection:
      integrated LumenRadio TiMo FX RDM - CRMX and W-DMX compatible
    • Data connection:
      RJ45 IN/OUT
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      180
      W
    • Standby power:
      110V (60Hz): 6W; 230V (50Hz): 6,4W
    • Power factor:
      >0,94
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      passive, fan-free
    • Housing:
      Sturdy die-cast aluminium body
    • Finish:
      black
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      500x119x148
      mm
    • Weight:
      5
      kg
    INSTALLATION
    • Suspension and fixing:
      any position with quick-lock omega brackets
    • Hardware on-board:
      sockets for quick-Lock Omega bracket (clamp not included)
    • Other:
      +/- 8° angle adjusting
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM, cTUVus, FCC
