Product Description

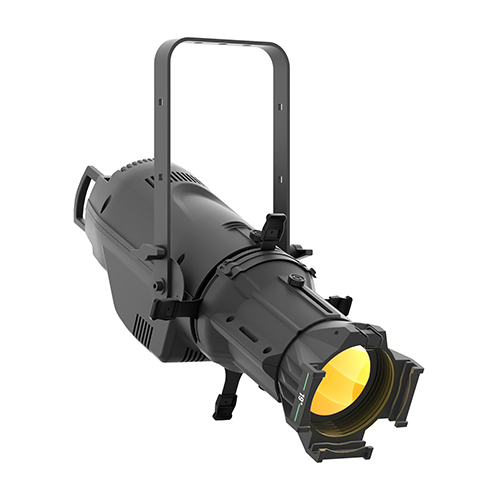

EclProfile CT+ is a high quality, six colour mixing LED ellipsoidal.
Designed to reach the finest quality of light for white tones and colour spectrum, its custom LED array and powerful on-board colour control allows to reach bright and high-quality whites, up to 97 of CRI, keeping a consistent output and ensuring a total control of the light.
The wide feature set includes special theatrical functions such as tungsten emulation on dimming, colour gels, virtual CTO and studio functions, such as +/- green correction on linear white CCT.
EclProfile CT+ is a high quality, six colour mixing LED ellipsoidal.
Designed to reach the finest quality of light for white tones and colour spectrum, its custom LED array and powerful on-board colour control allows to reach bright and high-quality whites, up to 97 of CRI, keeping a consistent output and ensuring a total control of the light.
The wide feature set includes special theatrical functions such as tungsten emulation on dimming, colour gels, virtual CTO and studio functions, such as +/- green correction on linear white CCT.
Features:Linear white CCT from 2.800 K to 10.000 K with CRI up to 97.
RGB / CMY / HSI / XY / RAW colours control of the six colours LED array for easy access to any desired colour.
Industry standard colour gels matching, tungsten emulation on dimming, tint control (+/- green).
- Source:Luxeon-C; 96x3W6 colour custom LEDs source (red, green, blue, royal blue, mint, pc amber)
- Source CCT:@full 5.000K
- Luminous flux:(5°) 3'805 lm; (10°) 4'790 lm; (14°) 5'047 lm; (19°) 5'380 lm; (26°) 6'681 lm; (36°) 6'814 lm; (50°) 5'773 lm; (70°) 7'430@Full
- Luminous flux:(zoom 15°-30°) (min angle) 5'290 lm; (max angle) 6'664 lm - (zoom 25°-50°) (min angle) 7'042 lm; (max angle) 9'817@Full
- Lux:(5°) 14'638 lx; (10°) 8'663 lx; (14°) 3'812 lx; (19°) 2'530 lx; (26°) 1'759 lx; (36°) 810 lx; (50°) 474 lx; (70°) 306lx@5 m full
- Lux:(zoom 15°-30°) (min angle) 3'502 lx; (max angle) 1'800 lx - (zoom 25°-50°) (min angle) 2'608 lx; (max angle) 974lx@5 m full
- CRI:93,7 @3.200 K; 97,6 @5.600 K
- R9:98,6 @3.200 K; 98,2 @5.600 K
- TLCI:95 @5.600 K
- TM30 Rf:92 @5.600 K
- TM30 Rg:100,1 @5.600 K
- Source life expectancy:> 50.000 h
- Lens type:high-quality glass lens optics
- Additional optics:optional 5° / 10° / 14° / 19° / 26° / 36° / 50° / 70° / 90° zoom 15°-30° / zoom 25°-50°
- Focus:manual
- Other:see available accessories
- Colour mixing:RGB, Royal Blue, Mint, PC Amber
- CCT:CCT control, + / - green correction, tungsten emulation
- White presets:2.800 K ~ 10.000K
- Special features:4 fan modes available and output management andlinear crossfade channel from any white to any colour; virtual CTO on colours
- Gobo size:(B size) 86 mm outer / 64.5 mm image / 1.1 mm thickness
- Supported Protocols:DMX512, RDM
- DMX channels:UNO / DUO / Basic / Standard / Extended / RAW Direct / RAW 16bit / XYch
- RDM:for remote addressing and parameter configuration
- Display:Graphic User Interface
- Stand Alone:selection of static colours, white presets, manual colours and built-in effects with adjustable speed
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 - 25Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX2 (not included) through dedicated software
- Power connection:Neutrik powerCON TRUE1 IN/OUT connectors
- Signal connection:Amphenol XLR 5p IN/OUT connectors
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):270W
- Output (at 230V):9units on a single power line
- Standby power:5W
- Power factor:> 0,95
- IP rating:IP20
- Cooling:low-noise fan
- Housing:Sturdy die-cast aluminium body
- Finish:black (RAL 9004)
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):264x259x539mm
- Weight:7,9kg
- Suspension and fixing:bracket for hanging and positioning
- Compliance:CE, UKCA, RCM, cTUVus, FCC
