Product Description
The ArcSpot series offers a range of IP66-rated dynamic luminaires, designed for exterior lighting of landscapes, trees, architectural features, and facades. This series provides a variety of fixture sizes and accessories, enabling precise targeting of the desired light intensity and quality for any application.

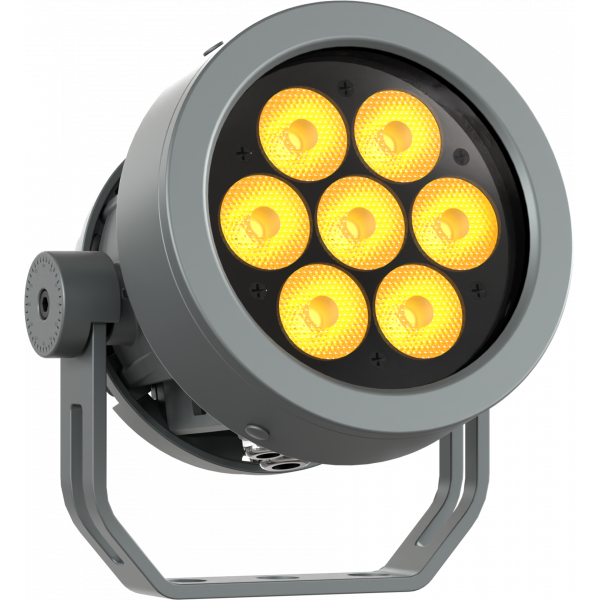

Among the series, the ArcSpot SFC stands out as an small round spot. It is equipped with 7x 4W RGB+WarmWhite LED source, delivering 10° beam angle with a fixture output of 1300 lumens.
These fixtures are engineered with a dual chamber design, with the physical separation of light sources and power units. This not only facilitates individual component replacement but also enhances heat dissipation, contributing to more durable applications and extended product longevity. Enhanced with a C5M marine-grade treatment, they are ideal for outdoor use, even in challenging salty environments or near the sea.
The unit is DMX compatible, offering the convenience of remote management via RDM.
Completing the ArcSpot series is a comprehensive selection of optics, holographic filters and light modifiers, providing endless possibilities in light distribution to suit every occasion.
The ArcSpot series offers a range of IP66-rated dynamic luminaires, designed for exterior lighting of landscapes, trees, architectural features, and facades. This series provides a variety of fixture sizes and accessories, enabling precise targeting of the desired light intensity and quality for any application.
Among the series, the ArcSpot SFC stands out as an small round spot. It is equipped with 7x 4W RGB+WarmWhite LED source, delivering 10° beam angle with a fixture output of 1300 lumens.
These fixtures are engineered with a dual chamber design, with the physical separation of light sources and power units. This not only facilitates individual component replacement but also enhances heat dissipation, contributing to more durable applications and extended product longevity. Enhanced with a C5M marine-grade treatment, they are ideal for outdoor use, even in challenging salty environments or near the sea.
The unit is DMX compatible, offering the convenience of remote management via RDM.
Completing the ArcSpot series is a comprehensive selection of optics, holographic filters and light modifiers, providing endless possibilities in light distribution to suit every occasion.
Features:Exterior Spot featuring 1300 lumen with 7x 4W RGB+WarmWhite LED source
IP66 with C5M for permanent exterior installation also in marine environment with dual chamber design
Comprehensive selection of optics, holographic filters and light modifiers
- Source:7 x 4WRGB + Warm White LED
- Luminous flux:1'304@Full
- Lux:969lx@5 m full
- Source life expectancy:> 90.000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle:10°
- Field angle:19°
- Additional optics:see available accessories
- Colour mixing:RGB + Warm White
- Colour wheel:gel filters included
- Macros:built-in white presets
- Static mode:selection of static dimmer, colors and color temperature
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512, RDM
- DMX channels:5 / 6 / 9 / 12ch
- RDM:for remote addressing and parameter configuration
- Display:user interface through DATAMASTER external coder (not included)
- Master/Slave:for synchronised operation of more units linked in a chain
- Other:16bit control of dimmer and colour
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1-30Hz, electronic
- Selectable PWM:600 to 25000 Hz (selectable steps)
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:53 cmmoulded IP power IN connector
- Signal connection:53 cmmoulded IP signal IN/OUT connectors
- Adaptors:XLR and BARE END 16A adaptors included
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):30W
- Standby power:0,5 W
- Power factor:> 0,9
- IP rating:IP66 for outdoor installations
- IK rating:IK07 impact rating
- Housing:Sturdy die-cast aluminium body, scratch-resistant C5M Marine Grade paint (as standard)
- Finish:basalt grey (RAL 7012)
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):147x171x106mm
- Weight:1,3kg
- Suspension and fixing:bracket for hanging and positioning
- Hardware on-board:optional accessories: half snoot and louvre
- Compliance:CE, RCM, FCC, cTUVus
