Product Description

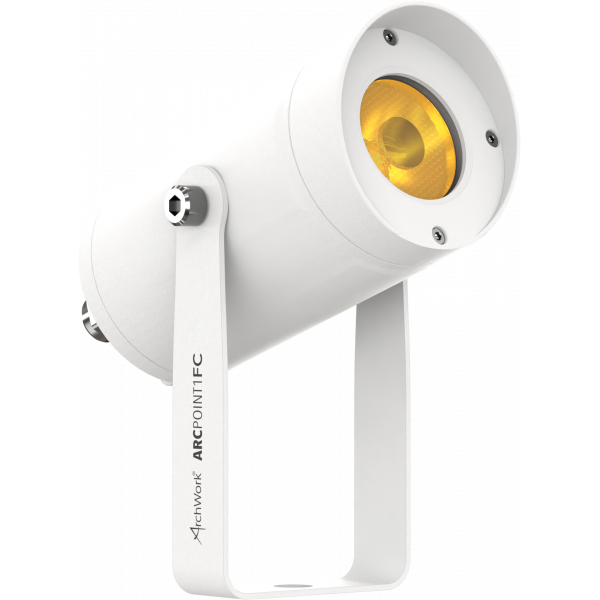

ArcPoint 1 is a compact exterior accent LED fixture designed for outdoor. The luminaire is equipped with a single Full Colour LED emitter delivering a wide spectrum of colours and whites all in a very compact housing. The fixture is supplied with a ground spike in the box, for easy implementation as garden light, and with the on board bracket it can be also implemented in larger foorprint installations as decor or accent light. The special design (IP66) and the innovative RDM control technology, makes ArcPoint 1 suitable for all weather conditions.
ArcPoint 1 is a compact exterior accent LED fixture designed for outdoor. The luminaire is equipped with a single Full Colour LED emitter delivering a wide spectrum of colours and whites all in a very compact housing. The fixture is supplied with a ground spike in the box, for easy implementation as garden light, and with the on board bracket it can be also implemented in larger foorprint installations as decor or accent light. The special design (IP66) and the innovative RDM control technology, makes ArcPoint 1 suitable for all weather conditions.
Features:10W CREE RGBW/FC LED
IP66 rating
Ground spike (supplied in the box) for fixing in the ground
- Source:10WRGBW CREE LED
- Luminous flux:353
- Lux:(10°) 924lx@3 m full
- Lux:(10°) 333lx@5 m full
- Source life expectancy:> 50.000 hrs (L70B10 @Ta 25° C / 77° F)
- Beam angle:10°
- Field angle:19°
- Colour mixing:CREE RGBW / FC
- White presets:3.200 K ~ 10.000K
- Colour wheel:virtual colour wheel with macros
- Macros:several pre-built macros with adjustable speed
- Static mode:selection of static colour
- Manual mode:manual adjustment of colour
- Auto mode:built-in programs with execution speed adjustment
- Supported Protocols:DMX512, RDM
- DMX channels:4 / 6 / 10ch
- Display:user interface through DATAMASTER external coder (not included)
- Master/Slave:for synchronised operation of more units linked in a chain
- Dimmer:linear 0 - 100% electronic dimmer
- Dimmer curves:4selectable dimming modes available
- Strobe / shutter:1 ~ 30Hz, electronic
- Firmware upgrade:via DMX with UPBOXPRO/UPBOX1 (not included)
- Power connection:moulded IP signal IN/OUT connectors
- Signal connection:moulded IP signal IN connector
- Adaptors:XLR and BARE END 16A adaptors included
- Mains power supply:100-240V - 50/60Hz
- Max power consumption (230V):13W
- Output (at 230V):40units on a single power line
- IP rating:IP66 for outdoor installations
- Cooling:fan-free with natural convection
- Housing:Sturdy die-cast aluminium body
- Finish:white (RAL 9003)
- Operating temperature:Ta-20 to +45 °C (-4 to +113 °F)
- Dimensions (WxHxD):104x163x174mm
- Weight:1,2kg
- Suspension and fixing:ground spike for fixing in the ground
- Other:ground spike (included)
- Compliance:CE, UKCA, RCM
