ARCPOD300FCLT
Share this product

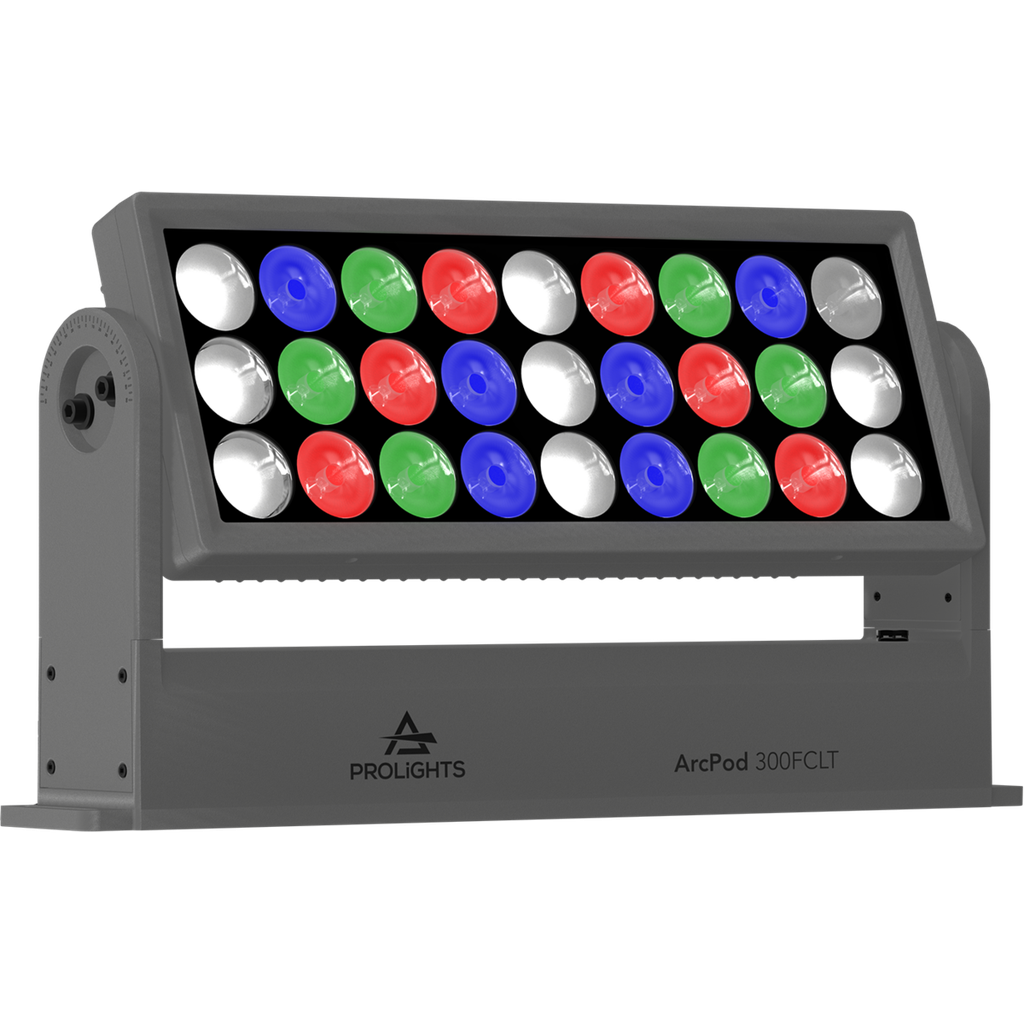

Prolights ARCPOD300FCLT

Exterior 2.5° narrow-beam lens Full Color wash light

0.00 AED 0.00 AED

Add to cart
Add to wishlist
View on Manufacturer Website

Product Description

Introducing the ARCPOD 300FCLT, a narrow-beam wash LED luminaire delivering exceptional long-throw performance with precise, powerful color output. Equipped with a native 2.5° lens, it is perfect for large-scale exterior installations requiring long-distance projection, such as bridges, stadiums, and city towers.

The ARCPOD 300FCLT delivers 700 lux at 40 meters, providing directional and precise illumination to minimize light pollution. With an IP66 rating and C5M marine corrosion protection, it offers enhanced durability against liquids, sand, and salt.

Weighing just 12 kg, the ARCPOD 300FCLT is ideal for outdoor use, requiring minimal maintenance. Secure mounting and optical customization are ensured with a wide range of brackets and lens modifiers. Combining precision, durability, and advanced technology, the ARCPOD 300FCLT sets a new benchmark in architectural lighting.

  • Exterior narrow-beam Full Color wash light featuring 700 lux at 40mt
  • Native 2.5° beam angle lens for long-throw projection
  • IP66 with C5M for permanent exterior installation also in marine environment
  • Comprehensive selection of optics, holographic filters and light modifiers

    • Introducing the ARCPOD 300FCLT, a narrow-beam wash LED luminaire delivering exceptional long-throw performance with precise, powerful color output. Equipped with a native 2.5° lens, it is perfect for large-scale exterior installations requiring long-distance projection, such as bridges, stadiums, and city towers.

    The ARCPOD 300FCLT delivers 700 lux at 40 meters, providing directional and precise illumination to minimize light pollution. With an IP66 rating and C5M marine corrosion protection, it offers enhanced durability against liquids, sand, and salt.

    Weighing just 12 kg, the ARCPOD 300FCLT is ideal for outdoor use, requiring minimal maintenance. Secure mounting and optical customization are ensured with a wide range of brackets and lens modifiers. Combining precision, durability, and advanced technology, the ARCPOD 300FCLT sets a new benchmark in architectural lighting.

    Features:
    Exterior narrow-beam Full Color wash light featuring 700 lux at 40mt
    Native 2.5° beam angle lens for long-throw projection
    IP66 with C5M for permanent exterior installation also in marine environment
    Comprehensive selection of optics, holographic filters and light modifiers

    LIGHT SOURCE
    • Source:
      (6 x red, 6 x green, 6 x blue, 9 x white) 27x10
      W
      RGBW LED
    • Source CCT:
      W: 6300
      K
    • Luminous flux:
      (with 3° filter on-board) 10'573 lm
      @Full
    • Lux:
      (with 3° filter on-board) 676
      lx
      @40 m full
    • Lux:
      (with 3° filter on-board) 43'251
      lx
      @5 m full
    • Source life expectancy:
      > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Optics:
      3° holographic filter fitted on board
    • Beam angle:
      (with 3° filter on-board) 4° - (only native lens) 2,5
      °
    • Field angle:
      (with 3° filter on-board) 7,5 - (only native lens) 5,3
      °
    • Lens type:
      TIR lenses
    • Additional optics:
      different holografic filters available as options to put behind the glass -
      see available accessories
    COLOUR SYSTEM
    • Colour mixing:
      RGBW
    • White presets:
      2.800 K ~ 10.000
      K
    • Colour wheel:
      virtual colour wheel with macros
    • Macros:
      several pre-built macros with adjustable speed
    DYNAMIC EFFECTS
    • Static mode:
      selection of static colour
    CONTROL
    • Supported Protocols:
      DMX512, RDM
    • DMX channels:
      5 / 7 / 10
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      user interface through DATAMASTER external coder (not included)
    • Master/Slave:
      for synchronised operation of more units linked in a chain
    MOVEMENT
    • Tilt:
      0 - 130
      °
      with manual adjustment
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Dimmer curves:
      4
      selectable dimming modes available
    • Strobe / shutter:
      1 ~ 30
      Hz, electronic
    • Selectable PWM:
      600 to 25000 Hz (selectable steps)
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      1,8 m
      moulded IP power IN/OUT connectors
    • Signal connection:
      1,8 m
      moulded IP signal IN connector
    • Adaptors:
      XLR and BARE END 16A adaptors included
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      260
      W
    • Output (at 230V):
      10
      units on a single power line
    • Output (at 120V):
      5
      units on a single power line
    • Standby power:
      3,5 W
    • Power factor:
      > 0,95
    PHYSICAL
    • IP rating:
      IP66 for outdoor installations
    • IK rating:
      IK08 impact rating
    • Cooling:
      fan-free with natural convection
    • Housing:
      Sturdy die-cast aluminium body, scratch-resistant C5M Marine Grade paint (as standard)
    • Finish:
      basalt grey (RAL 7012)
    • Operating temperature:
      Ta
      -20 to +45 °C (-4 to +113 °F)
    • Dimensions (WxHxD):
      584x304x114
      mm
    • Weight:
      12,2
      kg
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, RCM
