Product Description

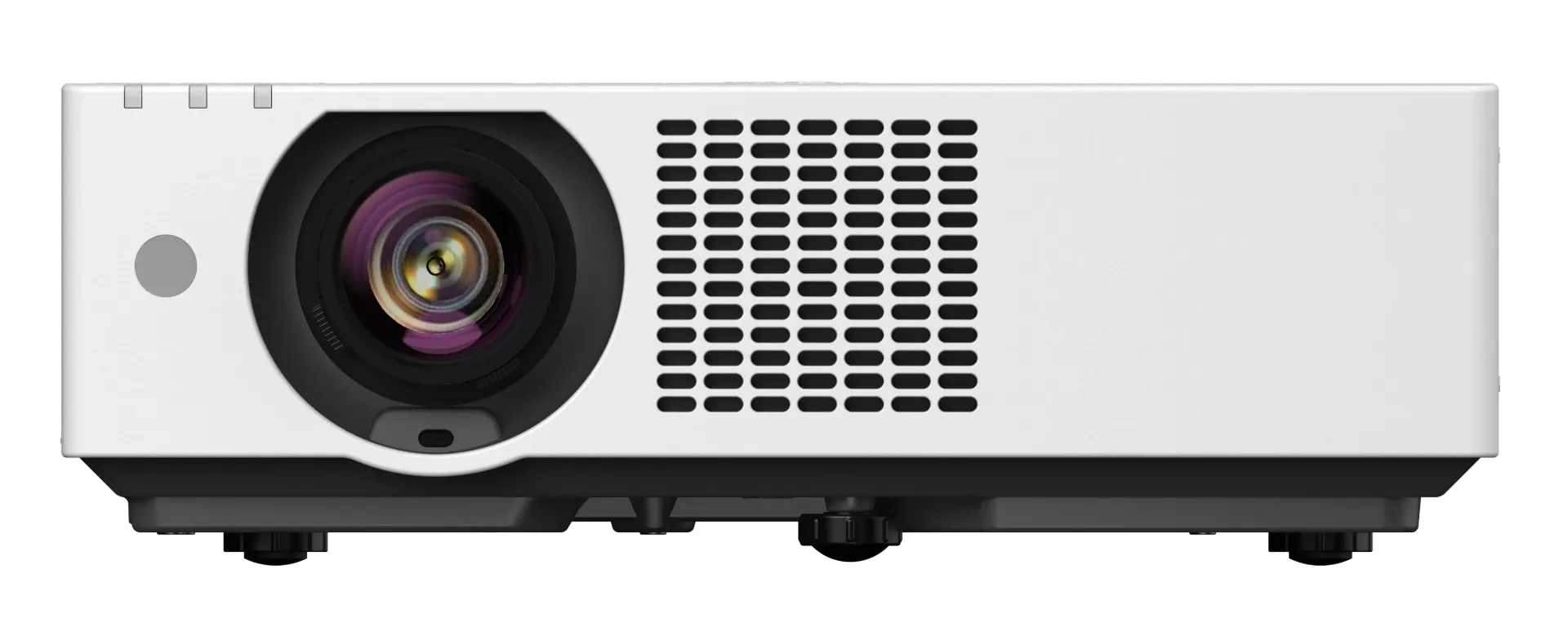

The PT-VMZ62STEJ is a specialized version of the VMZ62 series. While it shares the same high-quality 3-LCD laser engine, the "ST" in the name stands for Short-Throw. This projector is designed to create a massive image from a very short distance, making it the ultimate solution for small meeting rooms, tight museum galleries, and golf simulators where the player stands close to the screen.
🔍 How is it different from the standard VMZ62EJ?
The primary difference is the Lens. While the standard VMZ62 has a zoom lens that sits deep in the body, the ST model has a specialized wide-angle lens.
| Feature | PT-VMZ62EJ (Standard) | PT-VMZ62STEJ (Short-Throw) |
| Throw Ratio | 1.09 – 1.77:1 | 0.797 – 1.01:1 |
| 100" Image Distance | Approx. 2.35 meters | Approx. 1.72 meters |
| Brightness | 6,500 Lumens | 6,200 Lumens (slightly lower due to lens) |
| Focus | Manual | Powered Focus (Adjust via remote) |
| Weight | 6.9 kg | 8.3 kg (Heavier due to large glass lens) |
🌟 Key Highlights
Shadow-Free Projection: Because the projector sits so much closer to the wall, speakers or golfers are much less likely to cast a shadow on the image.
Powered Focus Control: Unlike the standard model where you turn a ring on the lens, the STEJ allows you to adjust the focus directly from the remote control—perfect if the projector is mounted out of reach.
Vivid Green Mode: Just like its brother, it features the 2024/25 "Vivid Green" mode, making it the premium choice for high-end golf simulation in smaller rooms.
Vertical & Horizontal Lens Shift: Even with a short-throw lens, you still get +50% vertical and ±20% horizontal shift, which is rare for this type of projector and makes installation much easier.
Digital Link Included: This model includes the HDBaseT/Digital Link port for high-quality signal over long cable runs.
Technical Specifications: PT-VMZ62STEJ
| Feature | Specification |
| Brightness | 6,200 ANSI Lumens (6,400 Center) |
| Native Resolution | WUXGA (1920 x 1200) |
| Technology | 3-LCD (0.64" Panel x 3) |
| Light Source | SOLID SHINE Laser (20,000 - 24,000 Hours) |
| Contrast Ratio | 3,000,000:1 (Dynamic Contrast) |
| Throw Ratio | 0.797 – 1.01:1 (Short-Throw) |
| Lens | 1.2x Manual Zoom / Powered Focus |
| Lens Shift | Vertical: +50%, Horizontal: ±20% |
| Keystone Correction | Vertical: ±25°, Horizontal: ±35° |
| Terminals | 2x HDMI (4K Ready), Digital Link, VGA, USB-A, Serial |
| Dimensions (WxHxD) | 414 x 120 x 424 mm |
| Weight | 8.3 kg (18.3 lbs) |
| Cabinet Color | Professional White |
